Hygienic and secure production

Corrosion protection is vitally important for quality and maintenance optimized production – to meet the rising worldwide demand for industrial cleaning technology. Our Corrosion Resistant and Hygienic Design products allow hygienic and sterile automation close to the process.

Hygienic Design

Integrated in the process

Applications

  • CIP (cleaning in place) / SIP (sterilization in place)
  • Delta robots
  • Food industry (production, processing, packaging, filling)
  • Cosmetics industry
  • Pharma industry
  • Process technology

Your Benefits

  • Suited for hygienic and sterile production
  • Direct contact with food allowed
  • Fast, efficient and reliable cleaning
  • Resistant to chemical cleaning materials and disinfectants
  • Optimal sealing properties
  • Maximum resistance to corrosion
  • New design freedom because the drive is integrated directly in the process

Corrosion Resistant Design

Close to the process

Applications

  • Environments with high humidity and cleaning process
  • Environments where contact with food occurs
  • Delta robots (e. g. with TP+ in corrosion resistant design)
  • Solar industry
  • Packaging industry
  • Outdoor use

Your Benefits

  • Protection against external influences (splash-proof to IP65)
  • Protection against flash rust and oxidation
  • Easy removal of fouling (germs, microorganisms, etc.)
  • Stable processes thanks to WITTENSTEIN quality

Applications

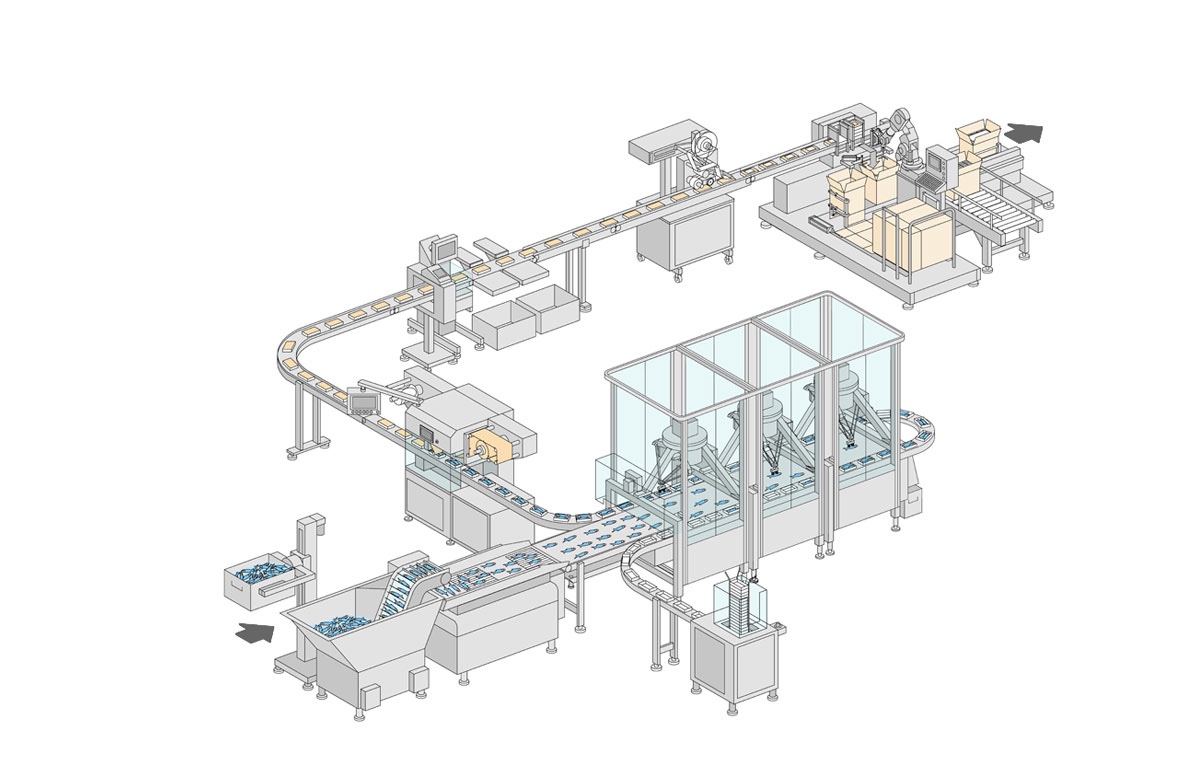

Fish processing

A hygienic production environment is a crucial factor in the fish processing industry. Increased consumer expectations with regard to quality and ever stricter legal regulations mean an unbroken cold chain and hygienic processes in the manufacture of fish products are vital. WITTENSTEIN is committed to supporting this trend with a comprehensive portfolio of drive solutions all along the production line.

Pick & Place Robot

HDP

The highly compact low-backlash planetary gearboxes HDP in EHEDG design are specifically designed for handling modules and delta kinematics and offer maximum safety in food processing . The new concept allows the designer new freedom in the construction of plants with highest requirements in hygienic and sterile production.

Tray feeding

SP+ / TP+ in corrosion resistant design

The corrosion resistant design is used for applications in corrosive environments. The SP+ version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation. Additionally we offer actuators TPM+ in corrosion resistant design.

Infeeding of the product

V-Drive Advanced

Servo worm gearboxes with hollow shaft flange output. The VDT+ impresses with its high power density and low torsional backlash. It is especially suitable for continuous duty applications.

Infeeding of the product

HG+ in corrosion resistant design

The successor to our versatile hypoid gearbox with hollow shaft on one / both sides. The corrosion resistant design is used for applications in corrosive environments. With the HG+ low torsional backlash and high torsional rigidity assure maximum positioning accuracy of your drives and precision of your machines – even during highly dynamic operation.

Tray Infeeding

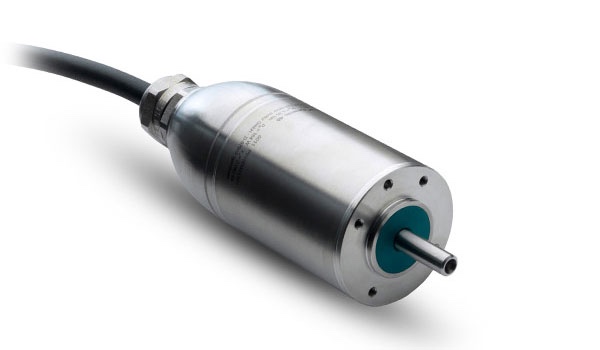

cyber® dynamic line in Inox Design

Featuring a full stainless steel housing and a robust construction, the industrial-grade small servo motors in the cyber® dynamic line in Inox Design are ideal for use in corrosive environments.

Gripping

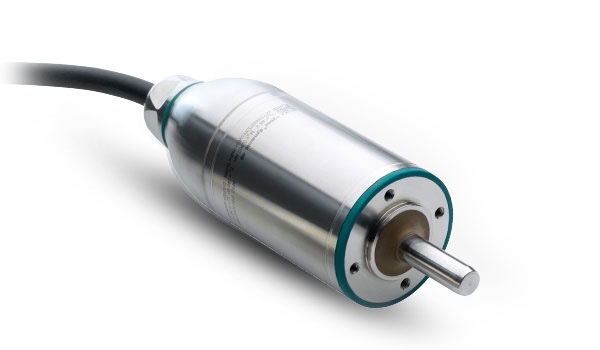

cyber® dynamic line in Hygienic Design

For dynamic processes with direct food contact our cyber® dynamic line in Hygienic Design is the optimal solution. The small servo motors allow a sterile productions and can be integrated in the process without further protection.

Sealing

HDV / AXV

The highly compact planetary gearboxes (HDV) and actuators (AXV) in EHEDG  design  enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

Selecting and ejecting of scrap parts

cyber® dynamic line

The industrial-grade small servo motors in the cyber® dynamic line are the professional choice for dynamic processes. The brushless servo motors are available in four different sizes with diameters from 17 to 40 mm with an power range of 25 to 335 watts. Featuring a high quality stainless steel housing and an absolute encoder, the new motor line offers outstanding precision and reliabilty.

Labeling

SP+

Low-backlash planetary gearboxes with output shaft. The standard version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation. The SP+ HIGH SPEED is particularly well suited for applications with maximum speeds during continuous operation.

Final Packaging

alpha Value Line

The low-backlash planetary gearboxes with output shaft or output flange. The alpha Value Line is universally applicable and offers almost every requirement for the best economic solution in each axis and for each industry.

Learn more about alpha Value Line

  • Pick & Place Robot

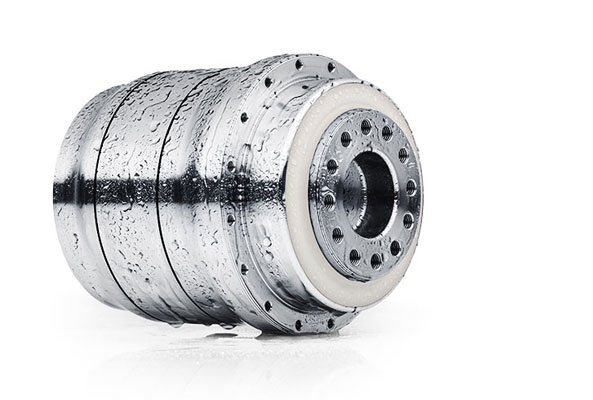

    HDP

    The highly compact low-backlash planetary gearboxes HDP in EHEDG design are specifically designed for handling modules and delta kinematics and offer maximum safety in food processing . The new concept allows the designer new freedom in the construction of plants with highest requirements in hygienic and sterile production.

  • Tray feeding

    SP+ / TP+ in corrosion resistant design

    The corrosion resistant design is used for applications in corrosive environments. The SP+ version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation. Additionally we offer actuators TPM+ in corrosion resistant design.

  • Infeeding of the product

    V-Drive Advanced

    Servo worm gearboxes with hollow shaft flange output. The VDT+ impresses with its high power density and low torsional backlash. It is especially suitable for continuous duty applications.

  • Infeeding of the product

    HG+ in corrosion resistant design

    The successor to our versatile hypoid gearbox with hollow shaft on one / both sides. The corrosion resistant design is used for applications in corrosive environments. With the HG+ low torsional backlash and high torsional rigidity assure maximum positioning accuracy of your drives and precision of your machines – even during highly dynamic operation.

  • Tray Infeeding

    cyber® dynamic line in Inox Design

    Featuring a full stainless steel housing and a robust construction, the industrial-grade small servo motors in the cyber® dynamic line in Inox Design are ideal for use in corrosive environments.

  • Gripping

    cyber® dynamic line in Hygienic Design

    For dynamic processes with direct food contact our cyber® dynamic line in Hygienic Design is the optimal solution. The small servo motors allow a sterile productions and can be integrated in the process without further protection.

  • Sealing

    HDV / AXV

    The highly compact planetary gearboxes (HDV) and actuators (AXV) in EHEDG  design  enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

  • Selecting and ejecting of scrap parts

    cyber® dynamic line

    The industrial-grade small servo motors in the cyber® dynamic line are the professional choice for dynamic processes. The brushless servo motors are available in four different sizes with diameters from 17 to 40 mm with an power range of 25 to 335 watts. Featuring a high quality stainless steel housing and an absolute encoder, the new motor line offers outstanding precision and reliabilty.

  • Labeling

    SP+

    Low-backlash planetary gearboxes with output shaft. The standard version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation. The SP+ HIGH SPEED is particularly well suited for applications with maximum speeds during continuous operation.

  • Final Packaging

    alpha Value Line

    The low-backlash planetary gearboxes with output shaft or output flange. The alpha Value Line is universally applicable and offers almost every requirement for the best economic solution in each axis and for each industry.

    Learn more about alpha Value Line

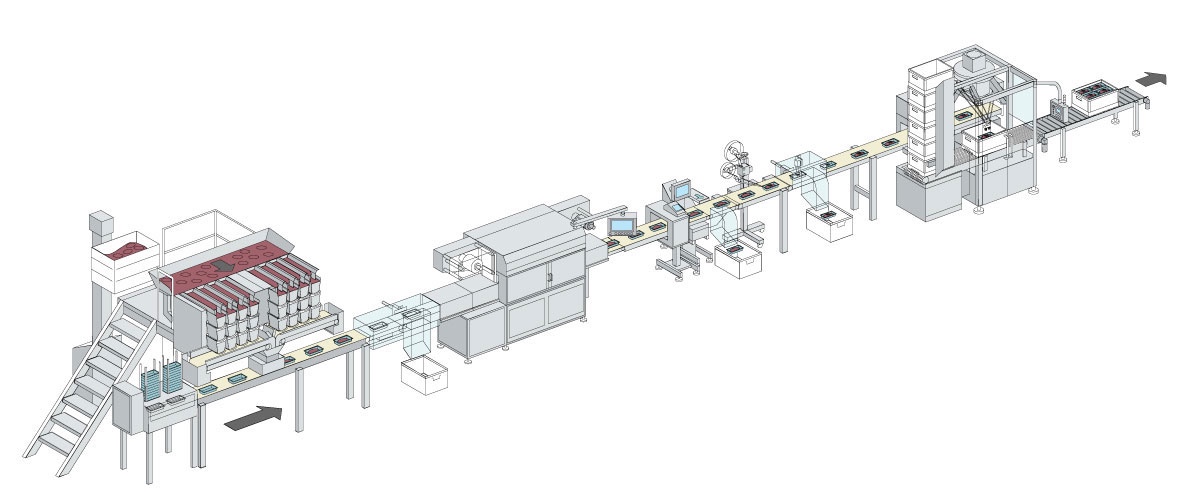

Meat packaging

In the packaging of meat products, daily cleaning is essential to prevent germs and bacteria from building up inside the machines. WITTENSTEIN can supply optimized products to meet a wide range of hygienic requirements on the complete production line from the primary to the final packaging. The high product reliability leads to improved overall equipment effectiveness and hence increased productivity.

Tray Infeeding

SP+ / TP+ in corrosion resistant Design

The corrosion resistant design is used for applications in corrosive environments. The SP+ version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation.

Filling

cyber® dynamic line in Hygienic Design

For space-limited applications with direct food contact our cyber® dynamic line in Hygienic Design is the optimal solution. The small servo motors with an outer diameter of 40 mm allow a sterile productions and can be integrated in the process without further protection.

Checkweighing

HDV / AXV

The highly compact planetary gearboxes (HDV) and actuators (AXV) in EHEDG  design  enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

Labeling

cyber® dynamic line

The industrial-grade small servo motors in the cyber® dynamic line are the professional choice for dynamic processes. The brushless servo motors are available in four different sizes with diameters from 17 to 40 mm with an power range of 25 to 335 watts. Featuring a high quality stainless steel housing and an absolute encoder, the new motor line offers outstanding precision and reliabilty.

Checkweighing

SP+ / TP+

The low backlash planetary gearbox with output shaft. The standard version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The SP+ HIGH SPEED is particularly well suited for applications with maximum speeds during continuous operation.

Pick & Place Robots

TP+ HIGH TORQUE

The low-backlash planetary gearboxes with output shaft. The TP+ HIGH TORQUE is particularly well suited for high-precision applications in which high torsional rigidity is required.

  • Tray Infeeding

    SP+ / TP+ in corrosion resistant Design

    The corrosion resistant design is used for applications in corrosive environments. The SP+ version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ version is ideally suited for high-positioning accuracy and highly dynamic cyclic operation.

  • Filling

    cyber® dynamic line in Hygienic Design

    For space-limited applications with direct food contact our cyber® dynamic line in Hygienic Design is the optimal solution. The small servo motors with an outer diameter of 40 mm allow a sterile productions and can be integrated in the process without further protection.

  • Checkweighing

    HDV / AXV

    The highly compact planetary gearboxes (HDV) and actuators (AXV) in EHEDG  design  enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

  • Labeling

    cyber® dynamic line

    The industrial-grade small servo motors in the cyber® dynamic line are the professional choice for dynamic processes. The brushless servo motors are available in four different sizes with diameters from 17 to 40 mm with an power range of 25 to 335 watts. Featuring a high quality stainless steel housing and an absolute encoder, the new motor line offers outstanding precision and reliabilty.

  • Checkweighing

    SP+ / TP+

    The low backlash planetary gearbox with output shaft. The standard version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The SP+ HIGH SPEED is particularly well suited for applications with maximum speeds during continuous operation.

  • Pick & Place Robots

    TP+ HIGH TORQUE

    The low-backlash planetary gearboxes with output shaft. The TP+ HIGH TORQUE is particularly well suited for high-precision applications in which high torsional rigidity is required.

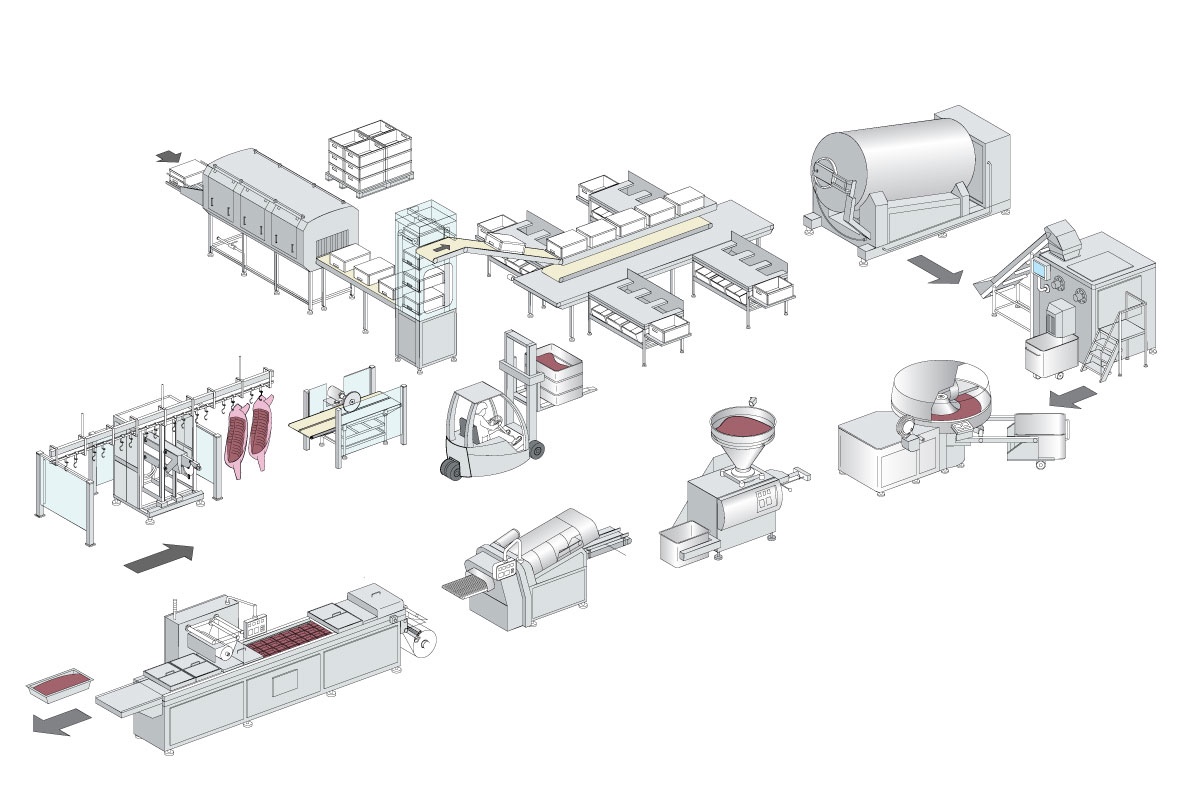

Meat processing

In the meat processing industry, daily cleaning is essential to prevent germs and bacteria from building up inside the machines. WITTENSTEIN can supply optimized, highly reliable products to meet a wide range of hygienic requirements on the complete production line. Engineers can thus design their machines according to an open concept and dispense with complicated enclosures.

Slaughtering

HDV / AXV

Our EHEDG certified HDV planetary gearboxes and AXV stainless steel actuators enable shorter cleaning cycles and increased machine uptime. The new concept gives designers unprecedented degrees of freedom to develop machines that meet the most exacting requirements for hygienic and sterile production processes.

Mixer mincer

cyber® special motors – food

The brushless servo motors in the cyber® special motors family are tailored to each customer’s requirements and designed to comply with EHEDG standards for food industry applications. These motors can optionally be water cooled, for example to prevent proteins from coagulating, even in space limited applications with direct food contact.

Filling / bottling

HDV

The wolrd’s first planetary gearboxes certified by EHEDG, enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

Cutting

cyber® kit motors

cyber® kit motors offer the ultimate in performance and flexibility in a compact size. Stator and rotor kits give the design engineer the highest degree of integration freedom to develop unique solutions for application specific needs.

Thermoforming

cyber® force motors

cyber® force motors are highly integrated motor / screw units. By integrating the ball or planetary screw directly into the motor, the linear actuators offer a uniquely compact package with flexible mounting. The servo motors are extremely reliable and durable and can optimally be designed to achieve ingress protection up to IP69X.

  • Slaughtering

    HDV / AXV

    Our EHEDG certified HDV planetary gearboxes and AXV stainless steel actuators enable shorter cleaning cycles and increased machine uptime. The new concept gives designers unprecedented degrees of freedom to develop machines that meet the most exacting requirements for hygienic and sterile production processes.

  • Mixer mincer

    cyber® special motors – food

    The brushless servo motors in the cyber® special motors family are tailored to each customer’s requirements and designed to comply with EHEDG standards for food industry applications. These motors can optionally be water cooled, for example to prevent proteins from coagulating, even in space limited applications with direct food contact.

  • Filling / bottling

    HDV

    The wolrd’s first planetary gearboxes certified by EHEDG, enable shorter cleaning cycles and increase machine availability. The high protection class of IP69X and the hygienic design offers the machine builder new freedom in the construction of machine with the highest standards of hygienic and sterile production.

  • Cutting

    cyber® kit motors

    cyber® kit motors offer the ultimate in performance and flexibility in a compact size. Stator and rotor kits give the design engineer the highest degree of integration freedom to develop unique solutions for application specific needs.

  • Thermoforming

    cyber® force motors

    cyber® force motors are highly integrated motor / screw units. By integrating the ball or planetary screw directly into the motor, the linear actuators offer a uniquely compact package with flexible mounting. The servo motors are extremely reliable and durable and can optimally be designed to achieve ingress protection up to IP69X.

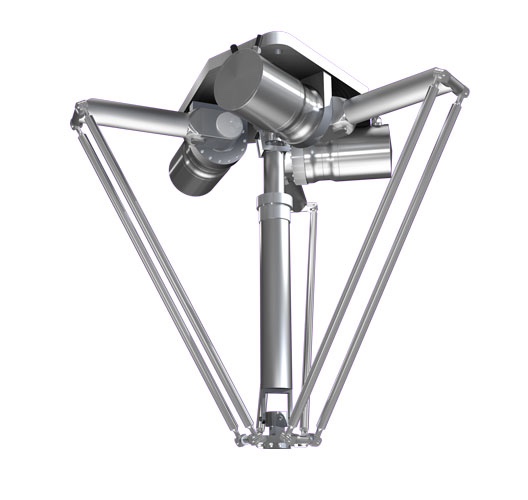

Delta robots

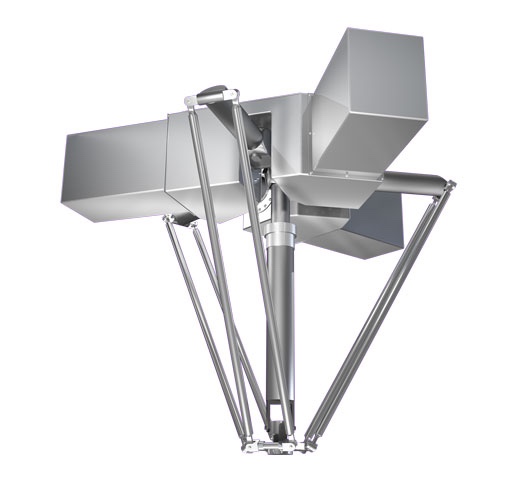

Conventional solutions

To ensure a reliable and a hygienically safe production, it was mandatory to use an extravagant housing for the drives. However, this solution has the following disadvantages:

  • Risk of dirt and moisture buildup under the encapsulation
  • Surfaces to be cleaned are large
  • Extra costs (design, cleaning)
  • Heat build-up under the encapsulation reduces the service life of the drive

Hygienic solution

New design freedom thanks to the Hygienic Design motor-gearbox unit. The highly precise HDP is particularly suitable for use in Delta-robotic applications:

  • Hygienic production because the drive components are cleaned directly
  • Smaller surfaces save time and cleaning costs
  • Open drive system extends the service life

Products in Hygienic Design

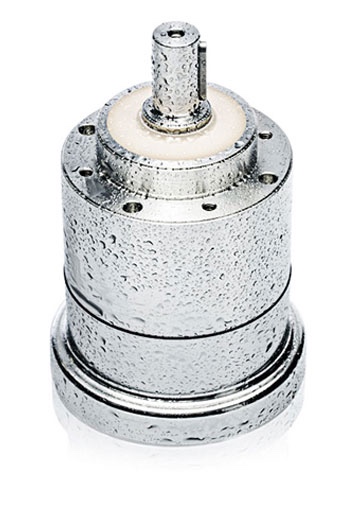

HDV / HDP+ Planetary gearbox

HYGIENIC AND STERILE

The Hygienic Design planetary gearbox HDV enables a safe, direct integration in the process. In addition to Hygienic Design gearbox HDV with output shaft we offer the gearbox HDP+ with output flange.



No dead spaces

No dead spaces

Food grade lubrication

Smooth rolled or electropolished surface in hygienic steel 1.4404

Triple sealing concept guarantees optimal reliability

Seales resistant to cleaning materials have IP69X protection

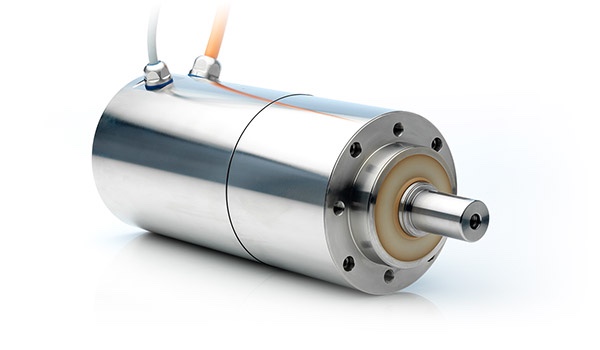

axenia value Servo actuators

HYGIENIC AND STERILE

Thanks to the perfect hygienic design according to EHEDG The compact stainless actuator and the  offers higher machine uptime rate reduced cleaning time to endusers and help OEM’s to create open and hygienic machine design with high flexibility.

Your benefits

  • Suited for hygienic and sterile production
  • Direct contact with food allowed
  • Fast, efficient and reliable cleaning
  • Resistant to chemical cleaning materials and disinfectants
  • Optimal sealing properties (IP69X)
  • Maximum resistance to corrosion
  • New design freedom because the drive is integrated directly in the process

IP69X cable gland according to EHEDG

IP69X cable gland according to EHEDG

No dead spaces

No dead spaces

Sealing ring resistant to cleaning materials with IP69X protection and FDA conformity

Sealing ring resistant to cleaning  materials with IP69X protection and FDA conformity

Triple sealing concept guarantees optimal reliability

Triple sealing concept guarantees optimal reliability

Smooth rolled or electropolished surface in hygienic steel 1.4404

Smooth rolled or electropolished surface in hygienic steel 1.4404

Lasered nameplate

Lasered nameplate

Conical cover without any screws according to EHEDG

Conical cover without any screws according to EHEDGG

cyber® dynamic line Servo motors

HYGIENIC AND STERILE

The Hygienic Design version of the brushless servo motors in the cyber® dynamic line are three-phase permanent magnet synchronous motors for output ratings up to 335 W. They feature an absolute encoder with a BISS C interface and facilitate excellent acceleration values, cycle rates and machine throughputs thanks to their high dynamic factor. These motors are strictly in conformity with EHEDG (European Hygienic Engineering & Design Group) guidelines and therefore ideal for all production and packaging tasks where absolute cleanliness is a must.

Benefits for you

  • Suited for hygienic and sterile production
  • Direct contact with food allowed
  • Fast, efficient and reliable cleaning
  • Resistant to chemical cleaning materials and disinfectants
  • Optimal sealing properties (IP69X)
  • Maximum resistance to corrosion
  • New design freedom because the drive is integrated directly in the process

Designed without edges or dead spots

Designed without edges or dead spots

IP69X cable gland according to EHEDG

IP69X cable gland according to EHEDG

Labeling machine-radable laser-marking

Labeling machine-radable laser-marking

All parts are welded together

All parts are welded together

Integrated sealing concept

Integrated sealing concept


Products in Corrosion resistant design

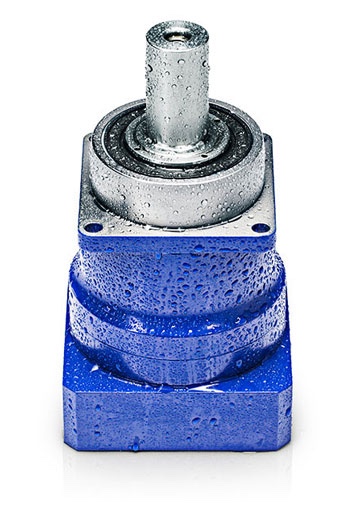

Planetary gearboxes

PROTECTION AGAINST CORROSION

Our drive solutions provide innovative, incomparable alternatives for applications in corrosive environments. The whole gearbox portfolio of WITTENSTEIN alpha is available in corrosion resistant design. Corrosion resistant couplings and shrink discs made of stainless steel complete the hygienic drive train.


Nickel plated surface

Nickel plated surface

Stainless steel output

Stainless steel output

Splash-proof to IP65

Splash-proof to IP65

Food grade lubrication

Food grade lubrication

2-component paint resistent to cleaning materials

2-component paint resistent to cleaning materials

cyber® dynamic line Servo motors

Protection against corrosion

WITTENSTEIN can also supply a corrosion resistant version of the cyber® dynamic line for applications where highly robust, industry-standard brushless DC motors are stipulated. These brushless servo motors are made entirely of stainless steel and achieve IP66/67 protection. They deliver up to 12 Nm of torque with an outer diameter of 40 mm in combination with the one to three-stage version of our optimally interacting planetary gearboxes.

Single cable solution

Single cable solution

Industrial grade cable gland

Industrial grade cable gland

Completely stainless steel

Completely stainless steel

Labeling machine-radable laser-marking

Labeling machine-radable laser-marking

Protection class IP66/67 (mounted)

Protection class IP66/67 (mounted)
