Products by WITTENSTEIN

WITTENSTEIN offers all main technologies for electromagnetic drive systems. Eight strong fields of business with specific core competencies, that are constantly setting standards with their innovations.

Filter:

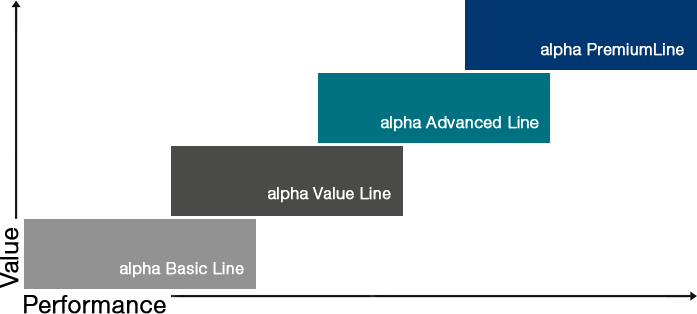

alpha product lines

Servo gearboxes

Low-backlash planetary gearboxes

CP alpha Basic

  • Ratio 3 - 100
  • Max. backlash ≤ 12 arcmin
  • Max. torque 17 - 800 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

CPS alpha Basic

  • Ratio 3 - 100
  • Max. backlash ≤ 12 arcmin
  • Max. torque 48 - 272 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

LPB+alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 37 - 305 Nm
  • Further characteristics: Food-grade lubrication

NP alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 18 - 800 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPS alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 51 - 800 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPL alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 51 - 800 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPT alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 18 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPR alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 8 arcmin
  • Max. torque 51 - 800 Nm
  • Further characteristics: Flange with slotted holes (standard), Food-grade lubrication
CAD POINT
cymex® select

NTP alpha Value

  • Ratio 4 - 100
  • Max. backlash ≤ 5 arcmin
  • Max. torque 56 - 800 Nm
  • Other models: food-grade lubrication
CAD POINT
cymex® select

HDV – Hygienic Design alpha Value

  • Ratio 4 - 100
  • Max. backlash ≤ 10 arcmin
  • Max. torque 46 - 320 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

SP+alpha Advanced

  • Ratio 3 - 100
  • Max. backlash ≤ 1 - 4 arcmin
  • Max. torque 48 - 5700 Nm
  • Further characteristics: Flange with slotted holes, ATEX (2014/34/EU), Food-grade lubrication, Corrosion resistant, Optimized mass inertia
CAD POINT
cymex® select

TP+alpha Advanced

  • Ratio 4 - 302,5
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 43 - 40000 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant, Optimized mass inertia
CAD POINT
cymex® select

HDP+ – Hygienic Design alpha Advanced

  • Ratio 22 - 55
  • Max. backlash ≤ 1 arcmin
  • Max. torque 252 - 1121 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant, Optimized mass inertia
CAD POINT
cymex® select

DP+ – Delta robots alpha Advanced

  • Ratio 16 - 55
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 50 - 1402 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant, Optimized mass inertia
CAD POINT

XP+alpha Premium

  • Ratio 3 - 100
  • Max. backlash ≤ 1 - 4 arcmin
  • Max. torque 56 - 4400 Nm
  • Further characteristics: Flange with slotted holes, Food-grade lubrication, Optimized mass inertia
CAD POINT
cymex® select

RP+alpha Premium

  • Ratio 4 - 220
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 352 - 10450 Nm
  • Further characteristics: Flange with slotted holes (standard), Food-grade lubrication, Optimized mass inertia
CAD POINT
cymex® select

Servo right-angle gearboxes

CPK alpha Basic

  • Ratio 3 - 100
  • Max. backlash ≤ 13 arcmin
  • Max. torque 14 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

CPSK alpha Basic

  • Ratio 3 - 100
  • Max. backlash ≤ 15 arcmin
  • Max. torque 33 - 272 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

CVH alpha Basic

  • Ratio 7 - 40
  • Max. backlash ≤ 15 arcmin
  • Max. torque 68 - 301 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

CVS alpha Basic

  • Ratio 7 - 40
  • Max. backlash ≤ 15 arcmin
  • Max. torque 68 - 301 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

LPBK+alpha Value

  • Ratio 3 - 10
  • Max. backlash ≤ 12 arcmin
  • Max. torque 22 - 220 Nm
  • Further characteristics: Food-grade lubrication

NPK alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 11 arcmin
  • Max. torque 14 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPSK alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 11 arcmin
  • Max. torque 33 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPLK alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 11 arcmin
  • Max. torque 33 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPTK alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 11 arcmin
  • Max. torque 14 - 700 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

NPRK alpha Value

  • Ratio 3 - 100
  • Max. backlash ≤ 11 arcmin
  • Max. torque 33 - 700 Nm
  • Further characteristics: Flange with slotted holes (standard), Food-grade lubrication
CAD POINT
cymex® select

NVH alpha Value

  • Ratio 4 - 400
  • Max. backlash ≤ 6 arcmin
  • Max. torque 74 - 365 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

NVS alpha Value

  • Ratio 4 - 400
  • Max. backlash ≤ 6 arcmin
  • Max. torque 74 - 365 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

SC+alpha Advanced

  • Ratio 1 - 2
  • Max. backlash ≤ 4 arcmin
  • Max. torque 12 - 378 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

SPC+alpha Advanced

  • Ratio 4 - 20
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 48 - 1936 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

TPC+alpha Advanced

  • Ratio 4 - 20
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 48 - 2560 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT
cymex® select

VT+alpha Advanced

  • Ratio 4 - 400
  • Max. backlash ≤ 2 - 3 arcmin
  • Max. torque 165 - 1505 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

VS+alpha Advanced

  • Ratio 4 - 400
  • Max. backlash ≤ 2 - 3 arcmin
  • Max. torque 165 - 1505 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

VH+alpha Advanced

  • Ratio 4 - 400
  • Max. backlash ≤ 2 - 3 arcmin
  • Max. torque 74 - 1505 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

SK+alpha Advanced

  • Ratio 3 - 100
  • Max. backlash ≤ 4 arcmin
  • Max. torque 20 - 768 Nm
  • Further characteristics: ATEX (2014/34/EU), Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

SPK+alpha Advanced

  • Ratio 12 - 10000
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 80 - 5700 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

HG+alpha Advanced

  • Ratio 3 - 100
  • Max. backlash ≤ 4 arcmin
  • Max. torque 20 - 768 Nm
  • Further characteristics: ATEX (2014/34/EU), Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

TK+alpha Advanced

  • Ratio 3 - 100
  • Max. backlash ≤ 4 arcmin
  • Max. torque 20 - 768 Nm
  • Further characteristics: ATEX (2014/34/EU), Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

TPK+alpha Advanced

  • Ratio 12 - 10000
  • Max. backlash ≤ 1,3 - 4 arcmin
  • Max. torque 80 - 10450 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT
cymex® select

XPC+alpha Premium

  • Ratio 4 - 20
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 48 - 2646 Nm
  • Further characteristics: Flange with slotted holes, Food-grade lubrication
CAD POINT
cymex® select

XPK+alpha Premium

  • Ratio 12 - 1000
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 40 - 2520 Nm
  • Further characteristics: Flange with slotted holes, Food-grade lubrication
CAD POINT
cymex® select

RPC+alpha Premium

  • Ratio 22 - 55
  • Max. backlash ≤ 1,3 arcmin
  • Max. torque 1402 - 7535 Nm
  • Further characteristics: Flange with slotted holes (standard), Food-grade lubrication
CAD POINT
cymex® select

RPK+alpha Premium

  • Ratio 48 - 5500
  • Max. backlash ≤ 1,3 arcmin
  • Max. torque 1100 - 10450 Nm
  • Further characteristics: Flange with slotted holes (standard), Food-grade lubrication
CAD POINT
cymex® select

Accessories for servo gearboxes

Couplings

  • Metal bellows couplings, Elastomer couplings, Torque limiter
  • Torsional resistant or dampening
  • Backlash and maintenance free
  • Precise transmission
  • Other models: corrosion resistant design

Flange shafts

  • Available for TP+, TPK+, TK+, TPC+
  • Flexible shaft diameter
  • Special models available

Shrink discs

  • Available for NVH, SP+, SPK+, HG+, VH+
  • Easy mounting and reusability
  • High accuarcy and smooth running
  • Other models: stainless steel, nickel plated

Galaxie®

Galaxie® D

  • 4 sizes
  • Zero backlash
  • Hollow shaft 26 to 57 mm
  • Max. output speed 125 rpm
  • Max. acceleration torque up to 4050 Nm
  • Torsional rigidity up to 1400 Nm/arcmin

Galaxie® G

  • 8 sizes
  • Zero backlash
  • Max. output speed: 125 rpm
  • Max. acceleration torque: 7500 Nm
  • Max. torsional rigidity: 2700 Nm/arcmin

Galaxie® GS

  • 6 sizes
  • Zero backlash
  • Max. output speed: 125 rpm
  • Max. acceleration torque: 6000 Nm
  • Max. torsional rigidity: 2500 Nm/arcmin

Galaxie® GH

  • 4 sizes
  • Zero backlash
  • Max. output speed: 95 rpm
  • Max. acceleration torque: 7500 Nm
  • Max. torsional rigidity: 2700 Nm/arcmin

Servo actuators

Rotary servo actuators

axenia value alpha Value

  • Max. speed up to 600 rpm
  • Max. backlash ≤ 15 arcmin
  • Max. torque up to 200 Nm
  • With optional analog or digital encoders and brake
cymex® select

TPM+ DYNAMIC alpha Advanced

  • Ratio 16 - 91
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 30 - 1300 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT

TPM+ HIGH TORQUE alpha Advanced

  • Ratio 22 - 220
  • Max. backlash ≤ 1 arcmin
  • Max. torque 230 - 3100 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT

TPM+ POWER alpha Advanced

  • Ratio 4 - 100
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 15 - 1600 Nm
  • Further characteristics: Food-grade lubrication, Corrosion resistant
CAD POINT

SPM+ / TPM+ endurance alpha Advanced

  • Max. speed 35- 1500 rpm
  • Max. torsional backlash ≤ 4 arcmin
  • Max. torque 260 - 10000 Nm
  • Optional with encoder and brake

premo® SP Line alpha Advanced

  • Ratio 16 - 100
  • Max. backlash ≤ 3 - 5 arcmin
  • Max. torque 32 - 315 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT

premo® TP Line alpha Advanced

  • Ratio 16 - 100
  • Max. backlash ≤ 1 - 3 arcmin
  • Max. torque 35 - 380 Nm
  • Further characteristics: Food-grade lubrication
CAD POINT

premo® XP Line alpha Premium

  • Ratio 16 - 100
  • Max. backlash ≤ 2 - 4 arcmin
  • Max. torque 35 - 450 Nm
  • Further characteristics: Flange with slotted holes, Food-grade lubrication
CAD POINT

Linear systems

System solutions

Value Linear Systems alpha Value

  • Adapted to linear applications with comparatively low requirements in terms of smooth running, positioning accuracy and feed force

Advanced Linear Systems alpha Advanced

  • Adapted to linear applications with average to high demands in terms of smooth running, positioning accuracy and feed force
  • Available with innovative rack assembly INIRA®

Premium Linear Systems alpha Premium

  • Adapted specifically to applications with extremely high demands in terms of smooth running, positioning accuracy and feed force
  • Available with innovative rack assembly INIRA®

Racks and pinions

Racks

  • Different versions available
  • Adapted to Value, Advanced and Premium Linear Systems
  • Revolutionary mounting method INIRA®

Pinions

  • Pinions adapted to gearbox and rack
  • Wide range available
  • Factory-assembled pinions available

Accessories for linear systems

LUC+125 – lubricator

  • Lubricator for minimum quantity lubrication
  • Replaceable cartridge 125 cm3
  • 24 V, with pulse control or independently time controlled
  • Up to 8 lubrication points with progressive distributor

LUC+400 – lubricator

  • Lubricator for minimum quantity lubrication
  • Replaceable cartridge 400 cm3
  • 24 V pulse control via the machine control system
  • Up to 32 lubrication points with progressive distributor
  • Ready-to-install solution with low maintenance costs

LUP-Progressive distributor

  • Progressive distributor with up to 8 outlets
  • Optimized for LUC+125 and LUC+400
  • Precise lubricant distribution
  • Ready-to-install solution
  • Optionally with monitoring function

LUS-Splitter

  • Splitter with up to 4 outlets
  • Optimized for LUC+125 and LUC+400
  • Ready-to-install solution

LMT-Lubrication pinion

  • Minimum quantity lubrication of open toothing
  • Module 1.5 – 8 mm
  • Tailored mounting axes
  • Flank direction: Right, left, straight

Sizing software

cymex® 5

  • Detailed calculation of complete drive trains
  • Precise simulation of motion and load parameters
  • Software available for download
  • License for basic version free of charge

Servo systems

Integrated system solutions

cyber® dynamic system

  • Motor size 40 mm
  • Supply voltage: 12 - 60 VDC
  • Max. torque: 1 - 22 Nm
  • Max. speed: up to 5000 U/min
  • Optional: absolute-encoder (Singleturn & Multiturn) and gearbox or ball screw


cyber® iTAS® system 2

  • DC bus voltage 48 VDC
  • Max. torque: 200 Nm
  • Max. nominal speed: up to 2.5 m/s
  • Integrated: Safety encoder, brake, wheel

cyber® iTAS® system

  • Size 004 - 050
  • DC bus voltage 24 - 48 VDC
  • Max. feed force 380 - 5200 N
  • Continuous feed force up to 2,6 m/s
  • Optional: dynamic brake, additional encoder for speed control, wheel

Accessories for servo systems

cyber® power supply

  • Version: Single-phase and three-phase power supplies
  • Input: AC 100-240 V / AC 380-480 V
  • Output: DC 24-48 V
  • Power: 120-960 W

Servo motors

Rotative synchronous motors

cyber® dynamic motor

  • Size: 17 - 40 mm
  • DC bus voltage: 48 VDC
  • Max. torque: 0,035 - 21 Nm
  • Max. speed: 5000 - 21000 rpm
  • Optional: absolute-encoder, brake, planetary gearbox or completely stainless steel
CAD POINT

cyber® kit line small

  • Size: 50 up to 85 mm
  • DC bus voltage: 48 VDC and 560 VDC
  • Max. torque: 1 - 30 Nm
  • Max. speed: 2500 - 10000 rpm

cyber® kit line medium

  • Size: 100 up to 112 mm
  • DC bus voltage: 48 VDC and 750 VDC
  • Max. torque: 16 - 90 Nm
  • Max. speed: 2200 - 3600 U/min

cyber® kit line large

  • Size: 290 up to 530 mm
  • DC bus voltage: 560 VDC
  • Max. torque: 580 – 9000 Nm
  • Max. speed: up to 250 rpm

Linear actuators

cyber® force line

  • Size: 105 mm
  • DC bus voltage: 750 VDC
  • Max. force: 10 - 25 kN
  • Max. rated speed: 500 - 1250 mm/s
  • Optional: stroke lengths 100 mm, 200 mm, 300 mm and 400 mm

cyber® dynamic actuator L

  • Size: 17 - 40 mm
  • DC bus voltage: 48 VDC
  • Max. force: 200 - 2000 N
  • Max. linear velocity: 300 - 900 mm/s
  • Optional: stroke lengths, completely stainless steel, encoder interfaces, holding brake
CAD POINT

Servo drives

cyber® simco® drive 2

  • Supply voltage: 12 to 60 VDC
  • Max. current: 15 - 200 Aeff
  • Max. power: 750 - 10.000 W
  • Protection class: IP20/IP65
CAD POINT

cyber® simco® drive 1

  • Supply voltage: 12 to 60 VDC
  • Max. current: 100 Arms
  • Max. power: 5000 W
  • Protection class: IP20

Other products of WITTENSTEIN group

The WITTENSTEIN group worldwide integrates all key technologies for electromechanical drive systems. Our innovations regularly set new benchmarks. Our portfolio extends from highly precise gearings to piezo drives and integrated electronics.

Flight Control System - Active Sidestick

Canard actuation system for rockets and space vehicles
